Deskripsi Produk

-= Product Overview =-

Product Type: Uninterruptible Power Supply (UPS) - Line Interactive

Series: Gaming Performance

Input Voltage: 230 V AC (single-phase)

Output Voltage: 230 V AC (single-phase)

Rated Power: 1320 W / 2200 VA

-= Key Features =-

Run Time:

Full Load (1320 W): 28 seconds

Half Load: 5 minutes 30 seconds

Max Capacity Used: 100%

Input Voltage Range: 168-302 V

Network Frequency: 50/60 Hz ± 3 Hz

Plug Standard: C19/C21

Input Harmonic Distortion: Less than 3% at full load

Output Wave Type: Sine wave

Transfer Time: 8 ms typical, 10 ms maximum

Efficiency: View Efficiency Graph (Not provided in summary)

Surge Energy Rate: 1080 J

Overcurrent Protection: 15 A

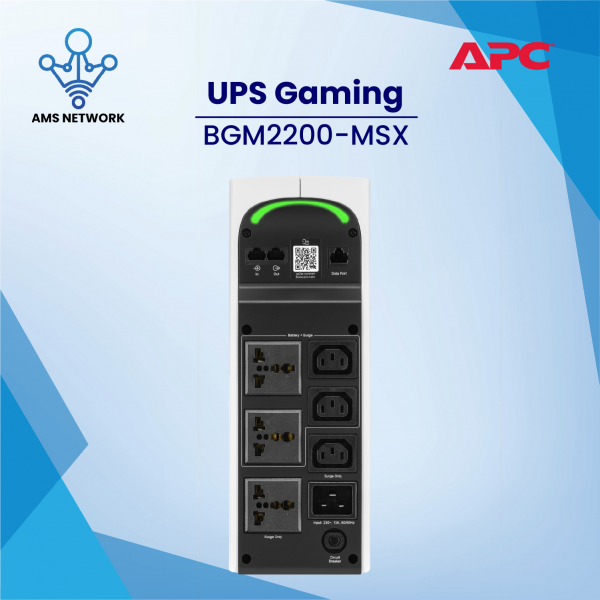

-= Connections =-

Input Connection: C19/C21

Output Connections:

2 x IEC 60320 C13 (surge protected)

1 x IEC 60320 C13 (surge protected)

2 x universal C13 (surge protected)

1 x universal C13 (surge protected)

Cable Length: 1.5 m

Included Equipment

1 x USB cable

2 x Power cables

1 x Power adapter

Safety Guide

-= Batteries & Runtime =-

Battery Type: Lead-acid

Battery Voltage: 24 V

Recharge Time: 16 hours

Battery Life: 3-5 years

Battery Charger Power: 12 W

Replacement Battery Quantity: 1

-= Physical Attributes =-

Color: Black

Dimensions:

Height: 292.1 mm

Width: 104.1 mm

Depth: 408.9 mm

Net Weight: 12.24 kg

Mounting: Floor, vertical position

Mounting Mode: Not rack-mountable

-= Environmental Specs =-

Operating Temperature: 0-40°C

Operating Altitude: 0-10,000 ft

Storage Temperature: -15-40°C

Storage Altitude: Up to 3048 m

Relative Humidity: 0-95% (non-condensing for operation and storage)

Acoustic Level: 45 dBA

IP Protection Rating: IP20

-= Management =-

Control Panel: Multifunction LCD status and control console

Alarms:

On battery

Low battery

Overload continuous tone alarm

Free Slots: 0

-= Certifications & Warranty =-

Certifications: CE, CB

Equipment Protection Policy: Lifetime ($150,000 coverage)

-= Warranty =-

2 years repair or replace

-= Surge Protection and Filtering =-

Noise Suppression: Full-time multi-pole noise filtering with 5% of IEEE surge let-through and instantaneous clamping response time

-= Packing Details =-

Package Type: PCE

Dimensions:

Height: 15.5 cm

Width: 35.5 cm

Length: 48 cm

Weight: 14.82 kg
