Deskripsi Produk

Main

Main Input Voltage : 230 V AC 1 phase

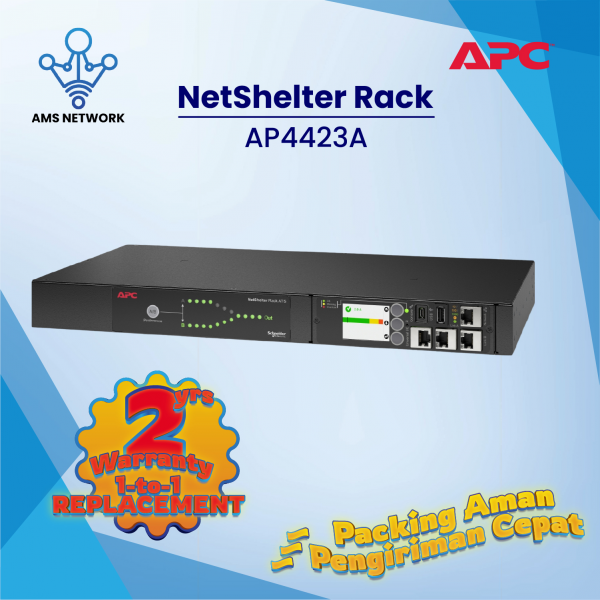

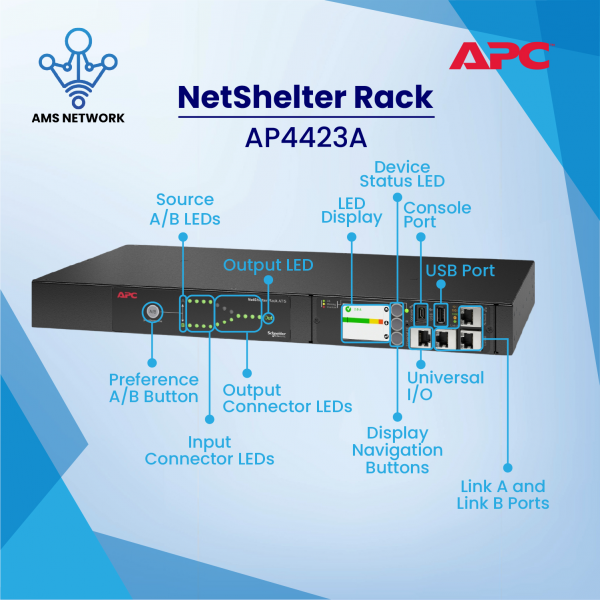

Product or component type : Automatic transfer switch

Main Output Voltage : 230 V AC 1 phase

Input Connection Type : IEC 60320 C20 16 A 2P + E

Number of rack unit : 1U

provided equipment : Mounting hardware, Rack mounting brackets

Physical

Colour : Black

height : 4.4 cm

Width : 43.2 cm

Depth : 23.6 cm

Net weight : 3.74 kg

Mounting location : Front

Mounting preference : No preference

Mounting mode : Rack-mounted

Mounting position : Horizontal

Input

Network frequency : 50/60 Hz

[In] rated current : 20 A

Permissible voltage : 207…253 V

Max line current : 20 A

Input current limits : 20 A

Load capacity : 3700 VA

Output

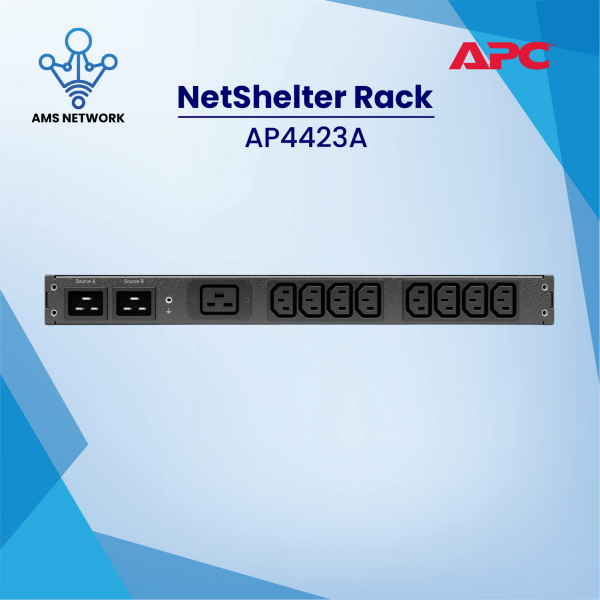

Number of power socket outlets :

8 IEC 60320 C13 10 A 2P + E

1 IEC 60320 C19 16 A 2P + E

Number of power socket outlets : 9

Protection type : Without circuit breaker

Power cable length : 2.44 m

Conformance

product certifications : cUL listed, CE, UL listed

Standards :

EN 55022 class A

FCC part 15 class A

Environmental

ambient air temperature for operation : -5…45 °C

Relative humidity : 5…95 %

Operating altitude : 0...10000 ft

Ambient air temperature for storage : -25…65 °C

Storage Relative Humidity : 5…95 %

Storage altitude : 0…15240 m

Packing Units

Unit Type of Package 1 : PCE

Number of Units in Package 1 : 1

Package 1 Height : 12.000 cm

Package 1 Width : 35.500 cm

Package 1 Length : 60.000 cm

Package 1 Weight : 5.492 kg

Contractual warranty

Warranty : 2 years repair or replace
