Deskripsi Produk

-= Main Specifications =-

Run Time for Load: 800 W (Min-max: 80-800 W)

Runtime (at max load): 23min 43s

Max Capacity Used: 100%

Main Input Voltage: 230V

Other Input Voltages: 220V, 240V

Main Output Voltage: 230V

Other Output Voltages: 220V, 240V

Rated Power: 800 W/1000 VA

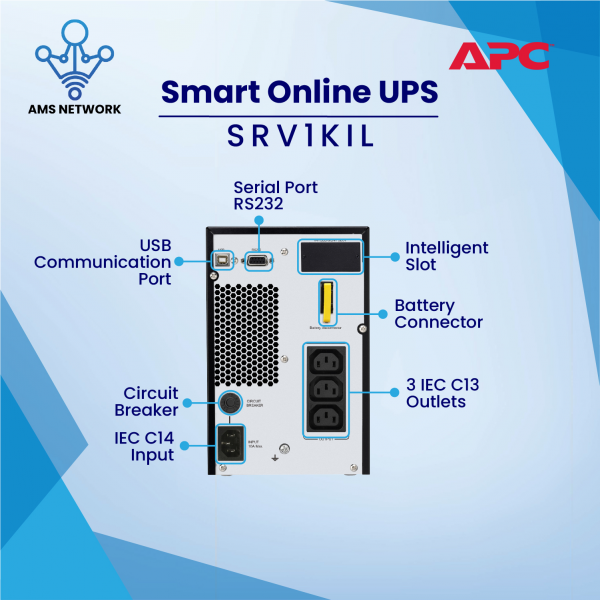

Input Connection Type: IEC 60320 C14

Output Connection Type:

- 3x IEC 60320 C13

- Cable Length: 1.5 m

- Number of Cables: 1

Provided Equipment:

1x IEC 60320 C13 to Schuko power cable

1x IEC 60320 C13 to C14 power cable

1x USB cable

1x RS-232 configuration cable

1x battery cable

User manual

-= Range of Product =-

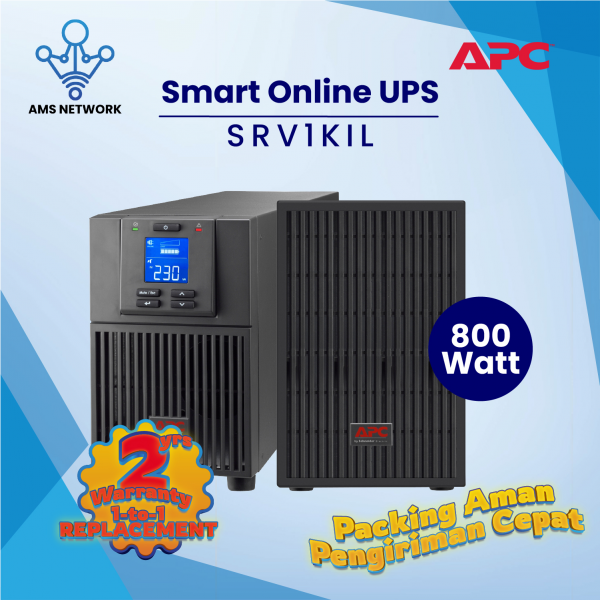

Series: Easy UPS On-Line

Batteries & Runtime:

Battery Type: Lead-acid

Battery Voltage: 36V

Battery Recharge Time: 4.5 hours

Battery Life: 3-5 years

Battery Charger Power: 175 W rated

-= Physical =-

Color: Black (RAL 7010)

Dimensions:

Height: 23.8 cm

Width: 29 cm

Depth: 40 cm

Net Weight: 24 kg

Mounting Location: Front

Mounting Mode: Not rack-mountable (vertical position)

USB Compatibility: No

-= Input =-

Input Voltage Limits:

110-285 V (half load)

160-280 V (full load)

Network Frequency: 40-70 Hz (auto sensing)

Output:

Maximum Configurable Power:

1000 VA

800 W

Output Frequency: 50/60 Hz ± 3 Hz (sync to mains)

Harmonic Distortion: 3%

UPS Type: Double conversion online

Wave Type: Sine wave

Efficiency: 88% (full load)

Additional Information: Configurable for 220, 230, or 240 nominal output voltage

Bypass Type: Internal bypass (automatic and manual)

Crest Factor: 3:1

-= Certifications & Standards:

Certifications: CE, UKCA, EAC, TISI

Standards:

EN/IEC 62040-1:2019/A11:2021

EN/IEC 62040-2:2006/AC:2006

EN/IEC 62040-2:2018

Environmental:

Operating Temperature: 0-40°C

Storage Temperature: -20-50°C

Operating Altitude: 0-3000 m

Storage Altitude: 0-15000 m

Relative Humidity:

Operation: 0-95% (non-condensing)

Storage: 0-95% (non-condensing)

Acoustic Level: 50 dBA

Heat Dissipation: 372 Btu/h

IP Protection: IP20

Communications & Management:

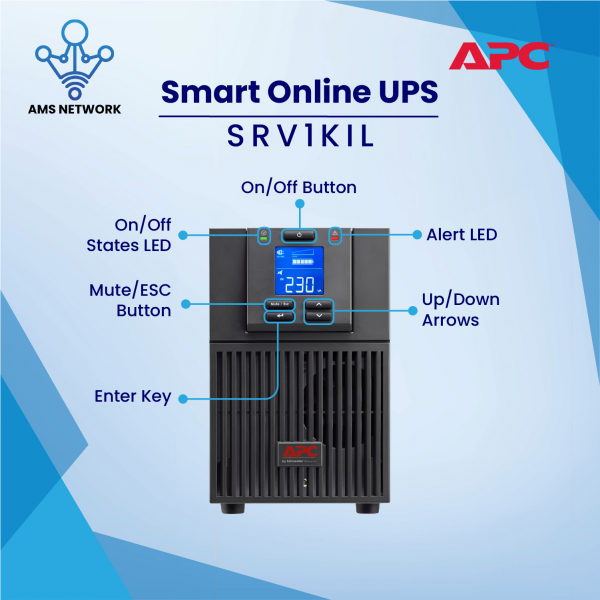

Control Panel: Multifunction LCD status and control console

Alarms: Distinctive low battery alarm, overload continuous tone alarm

Free Slots: 1

Surge Protection & Filtering:

Surge Energy Rating: 600 J

Packing Units:

Package Type: PCE

Package Dimensions:

Height: 35.5 cm

Width: 47 cm

Length: 52.5 cm

Package Weight: 26.7 kg

Number of Units in Package: 2

Warranty:

Contractual Warranty: 2 years repair or replace
