Deskripsi Produk

AMS Network, sebagai distributor UPS APC terpercaya, selalu mengutamakan kepuasan pelanggan. Kami tidak hanya menyediakan UPS APC SRT10KXLI dengan kualitas terbaik, tetapi juga memberikan layanan konsultasi yang menyeluruh untuk membantu Anda memilih produk yang tepat. Tim kami yang berpengalaman siap membantu Anda 24/7.

Main Specifications

• Run Time for Load: 10000 W (Min-Max: 1000-10000 W) - 3min 45s
• Max. Capacity Used: 100%
• Main Input Voltage: 230 V, 400 V (3 phases)
• Other Input Voltage: 220 V, 240 V, 380 V, 415 V
• Main Output Voltage: 230 V
• Other Output Voltage: 220 V, 240 V
• Rated Power: 10000 W / 10000 VA

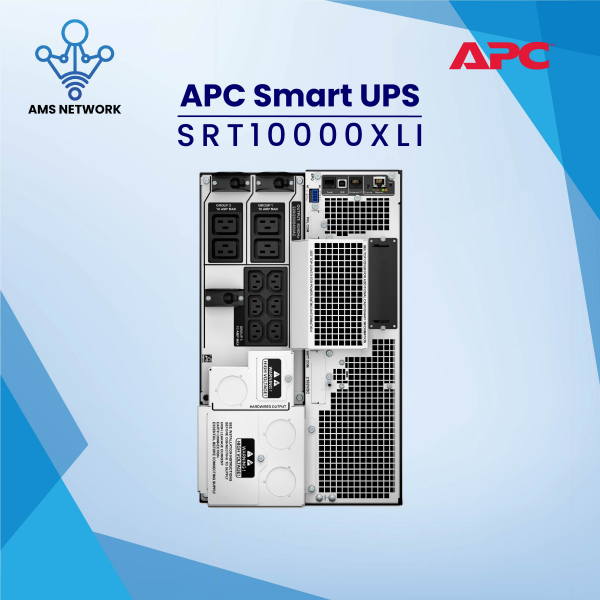

• Output Connection Type:
  • 6 IEC 60320 C13
  • 3 IEC Jumpers
  • 4 IEC 60320 C19
  • Hard wire 3-wire (H N + E) 1
• Provided Equipment:
  • CD with software
  • Documentation CD
  • Installation guide
  • Temperature probe
  • USB cable
  • Warranty card
  • Web/SNMP management card
• Range of Product: Smart-UPS On-Line

Batteries & Runtime

• Run Time: View Runtime Graph
• Efficiency: View Efficiency Graph
• Battery Type: Lead-acid battery
• Number of Battery Filled Slots: 0
• Battery Recharge Time: 1.5 h
• Number of Battery Replacements: 2
• Battery Voltage: +/- 192 V (split battery referenced to neutral)
• Battery Charger Power: 876 W rated
• Battery Life: 3-5 years
• Replacement Battery: APCRBC140
• Extended Runtime: 1

General

• UPS Type: Double conversion online
• Product Web Sub-Family: High density
• Number of Power Module Free Slots: 0
• Number of Power Module Filled Slots: 0
• Redundant: No

Physical

• Colour: Black
• Dimensions (HxWxD): 43.2 cm x 26.3 cm x 71.5 cm
• Net Weight: 111.82 kg
• Mounting Location: Front
• Mounting Preference: No preference
• Mounting Mode: Rack-mounted with kit
• USB Compatible: Yes

Input

• Network Frequency: 40-70 Hz auto-sensing
• Number of Input Connectors:
  • 1 hard wire 3-wire (1P + N + E)
  • 1 hard wire 5-wire (3P + N + E)
• Input Voltage Limits:
  • 100-275 V adjustable (half load)
  • 173-476 V adjustable (half load)

Output

• Maximum Configurable Power: 10000 VA / 10000 W
• Output Frequency: 50/60 Hz +/- 3 Hz sync to mains
• Wave Type: Sine wave
• Harmonic Distortion: Less than 2%
• Crest Factor: 3:1
• Bypass Type: Internal bypass (automatic and manual)

Conformance

• Product Certifications: CE, EAC, IRAM, RCM, VDE
• Marking: CE Mark
• Standards:
  • EN/IEC 62040-1:2019/A11:2021
  • EN/IEC 62040-2:2006/AC:2006
  • EN/IEC 62040-2:2018

Environmental

• Operating Temperature: 0-40 °C
• Relative Humidity: 0-95%
• Operating Altitude: 0-10,000 ft
• Storage Temperature: -15-45 °C
• Storage Relative Humidity: 0-95% non-condensing
• Storage Altitude: 0-15,240 m
• Acoustic Level: 55 dBA
• Heat Dissipation: 1947 Btu/h
• IP Degree of Protection: IP20

Communications & Management

• Free Slots: 1
• Preinstalled Device: Network management card 3 with environmental monitoring
• Alarm: Audible and visible alarms, prioritized by severity
• Emergency Power Off: Yes

Surge Protection and Filtering

• Surge Energy Rating: 480 J

Contractual Warranty

• Warranty: 3 years repair or replace (excluding battery)
