Deskripsi Produk

AMS Network, sebagai distributor UPS APC terpercaya, selalu mengutamakan kepuasan pelanggan. Kami tidak hanya menyediakan UPS APC SRV1KI-E dengan kualitas terbaik, tetapi juga memberikan layanan konsultasi yang menyeluruh untuk membantu Anda memilih produk yang tepat. Tim kami yang berpengalaman siap membantu Anda 24/7.

Main Specifications

• Run Time for Load:
  • 800 W
  • Min-Max: 80-800 W
  • 3 min 49s (Max. Capacity Used: 100%)
• Main Input Voltage: 230 V
• Product Type: Uninterruptible Power Supply (UPS)
• Other Input Voltage: 220 V, 240 V
• Main Output Voltage: 230 V
• Other Output Voltage: 220 V, 240 V
• Rated Power:
  • 800 W
  • 1000 VA

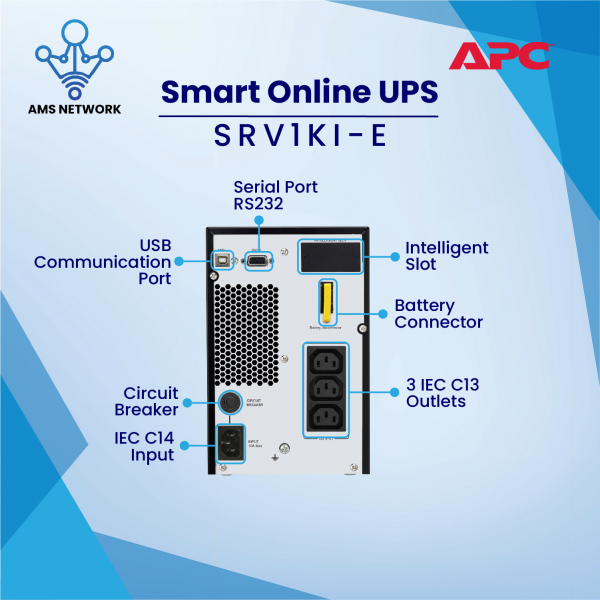

• Input Connection Type: IEC 60320 C14
• Output Connection Type: 3 IEC 60320 C13
• Cable Length: 1.50 m
• Number of Cables: 1
• Provided Equipment:
  • 1 IEC 60320 C13 to Schuko power cable
  • 1 IEC 60320 C13 to C14 power cable
  • 1 USB cable
  • 1 RS-232 configuration cable
  • User manual
• Range of Product: Easy UPS On-Line

Batteries & Runtime

• Battery Type: Lead-acid battery
• Battery Voltage: 24 V
• Number of Battery Filled Slots: 1
• Number of Battery Free Slots: 0
• Battery Recharge Time: 4 hours
• Battery Life: 3-5 years
• Replacement Battery: APCRBCV203
• Battery Charger Power: 30 W rated

General

• Max Runtime: 4 min
• Number of Power Module Filled Slots: 0
• Number of Power Module Free Slots: 0
• Redundant: No

Physical

• Colour: Black (RAL 7010)
• Dimensions (HxWxD): 22.3 cm x 14.5 cm x 28.8 cm
• Net Weight: 9.3 kg
• Mounting Location: Front
• Mounting Support: Floor
• Mounting Preference: No preference
• Mounting Mode: Not rack-mountable
• USB Compatible: Yes
• Mounting Position: Vertical

Input

• Input Voltage Limits:
  • 110-285 V (half load)
  • 160-280 V (full load)
• Network Frequency: 40-70 Hz auto sensing

Output

• Maximum Configurable Power:
  • 1000 VA
  • 800 W
• Output Frequency: 50/60 Hz +/- 3 Hz sync to mains
• Harmonic Distortion: 3%
• UPS Type: Double conversion online
• Wave Type: Sine wave
• Efficiency: 88% (full load)
• Additional Information: Configurable for 220, 230, or 240 nominal output voltage
• Bypass Type: Internal bypass (automatic and manual)
• Crest Factor: 3:1

Conformance

• Product Certifications: CE, UKCA, EAC, TISI
• Standards:
  • EN/IEC 62040-1:2019/A11:2021
  • EN/IEC 62040-2:2006/AC:2006
  • EN/IEC 62040-2:2018

Environmental

• Operating Temperature: 0-40 °C
• Relative Humidity: 0-95% non-condensing
• Operating Altitude: 0-3000 m
• Storage Temperature: -20-50 °C
• Storage Relative Humidity: 0-95% non-condensing
• Storage Altitude: 0-15,000 m
• Acoustic Level: 50 dBA
• Heat Dissipation: 372 Btu/h
• IP Degree of Protection: IP20

Communications & Management

• Alarm: Alarm when on battery, distinctive low battery alarm, overload continuous tone alarm
• Free Slots: 1

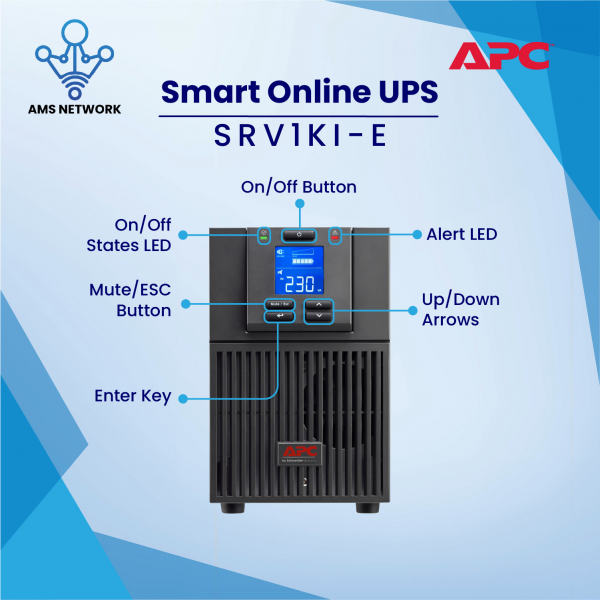

• Control Panel: Multifunction LCD status and control console

Surge Protection and Filtering

• Surge Energy Rate: 600 J

Packing Units

• Package Type: PCE
• Number of Units in Package: 1
• Package Dimensions (HxWxL): 33 cm x 23.5 cm x 36.5 cm
• Package Weight: 10.6 kg

Contractual Warranty

• Warranty: 2 years repair or replace
