Deskripsi Produk

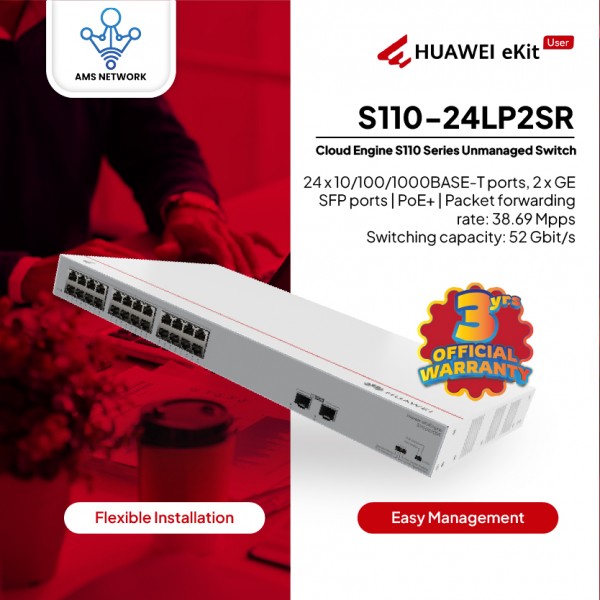

Huawei S110-24LP2SR is a PoE switch with support for active power supply 802.3af/at with a PoE budget of 124W, which is equipped with 24 PoE ports and 2 SFP slots for uplink. Switch without management is in a metal rackmount chassis, it is possible to mount it on the wall or use as desktop. A pair of switches is located on the front. The first one allows you to choose between Standard, Port Isolation, Uplink aggregation and Flow control disabling modes. The second switch is used to switch the state of the LEDs between port and PoE power statuses.

Technical parameters

Connectors and Interfaces
LAN speed: (24) 10/100/1000Mbps
Optical interfaces: (2) 1000Mbps
Power
Power type: Mains power (230V)
PoE type: PoE-Out (only)
PoE-Out standards: 802.3af, 802.3at
PoE Out ports: 24
PoE budget [W]: 124
Max. power consumption [W]: 27
Power via connector/terminal: 230V AC
Physical characteristics
Design: On the wall, Desktop, Rackmount
Fans: No
Chassis design: Metal
Operating temperature [°C]: 0 up to 45
Width [mm]: 442
Height [mm]: 44
Depth [mm]: 260
General
Switchning capacity [Gbps]: 52
MAC address table: 8000
Packet forwarding rate [Mpps]: 38,69
