Deskripsi Produk

AMS Network, sebagai distributor UPS APC terpercaya, selalu mengutamakan kepuasan pelanggan. Kami tidak hanya menyediakan UPS APC BR650MI dengan kualitas terbaik, tetapi juga memberikan layanan konsultasi yang menyeluruh untuk membantu Anda memilih produk yang tepat. Tim kami yang berpengalaman siap membantu Anda 24/7.

Main Specifications

• Run Time for Load:
  • 390 W
  • Min-Max: 39-390 W
  • 2 min 44s (Max. Capacity Used: 100%)
• Main Input Voltage: 230 V
• Main Output Voltage: 230 V
• Rated Power:
  • 390 W
  • 650 VA
• Product Type: Uninterruptible Power Supply (UPS)

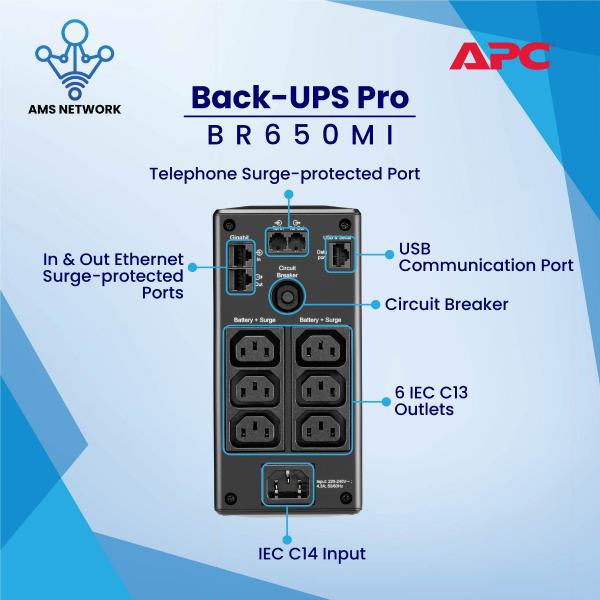

• Input Connection Type: IEC 60320 C13
• Output Connection Type: 6 IEC 60320 C13

Batteries & Runtime

• Battery Type: Lead-acid battery
• Battery Voltage: 12 V
• Battery Capacity: 7.0 Ah
• Number of Battery Filled Slots: 0
• Number of Battery Free Slots: 0
• Battery Recharge Time: 12 hours
• Battery Life: 3-5 years
• Replacement Battery: APCRBC110
• Battery Charger Power: 6 W rated
• Extended Runtime: 0

General

• Provided Equipment:
  • User manual
  • USB cable
• Number of Power Module Free Slots: 0
• Number of Power Module Filled Slots: 0
• Redundant: No

Physical

• Height: 19 cm
• Width: 9.1 cm
• Depth: 31 cm
• Net Weight: 6.4 kg
• Mounting Preference: No preference
• Mounting Mode: Not rack-mountable
• Two Post Mountable: 0
• USB Compatible: No

Input

• Network Frequency: 50/60 Hz +/- 3 Hz auto-sensing
• Input Voltage Limits: 176-294 V
• Maximum Input Current: 10 A
• Switching Current Capacity: 10 A

Output

• Maximum Configurable Power:
  • 390 W
  • 650 VA
• Output Frequency: 50/60 Hz +/- 1 Hz sync to mains
• UPS Type: Line interactive
• Wave Type: Stepped approximation to a sinewave
• Transfer Time: 10 ms typical, 12 ms maximum

Conformance

• Product Certifications: A-Tick, C-Tick, CE, EAC, RCM, TISI
• Marking: GS Mark
• Standards:
  • EN/IEC 62040-1:2019/A11:2021
  • EN/IEC 62040-2:2006/AC:2006
  • EN/IEC 62040-2:2018

Environmental

• Operating Temperature: 0-40 °C
• Relative Humidity: 0-95%
• Operating Altitude: 0-10,000 ft
• Storage Temperature: -15-45 °C
• Storage Relative Humidity: 0-95%
• Storage Altitude: 0-15,240 m
• Acoustic Level: 45 dBA
• Heat Dissipation: 13.3 Btu/h

Communications & Management

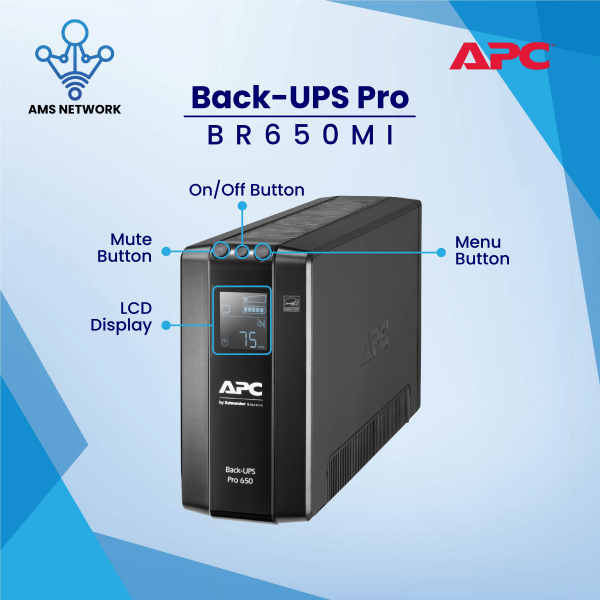

• Control Panel: Multifunction LCD status and control console
• Alarm: Alarm when on battery, distinctive low battery alarm, overload continuous tone alarm

Surge Protection and Filtering

• Noise Suppression: Full-time multi-pole noise filtering, 10% of IEEE surge let-through, zero clamping response time: instantaneous

Packing Units

• Package Type: PCE
• Number of Units in Package: 1
• Package Dimensions (HxWxL): 25.5 cm x 14.3 cm x 44 cm
• Package Weight: 7.4 kg

Contractual Warranty

• Warranty: 2 years repair or replace, 3 years repair
